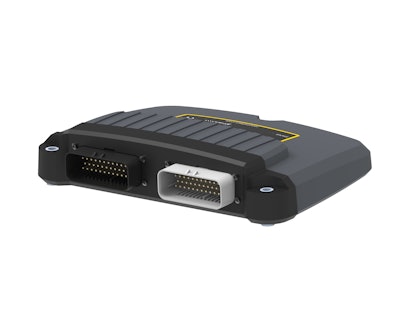

CrossFire SX I/O Controller

CrossControl displays its CrossFire SX safety certified I/O controller featuring an open platform for ease of design for machine control systems.

CrossFire SX 5617e5af519c0
Download 58335cab90956

CrossControl introduces CrossFire SX, a safety certified I/O controller.

  • Offers I/O flexibility and range of options for software programming
  • Provides open platform for easy design of safe machine control systems
  • Based on modern ARM Cortex R4 Safety CPU, enabling efficient implementation of safety functionality
  • Meets ISO 13849 PL d and IEC61131 SIL2 safety requirements
  • Features 16 inputs and 16 outputs, all totally configurable in terms of I/O type
  • Inputs support Digital, Current, Frequency and Voltage on different levels
  • Outputs support High and Low Current outputs, PWM, PWMi, Digital HS/LS and H-bridge
  • Freely programmable in either C or CoDeSys
  • CANopen Safety and set of safety features make it easy for system developers to implement safety functions
  • Includes three CAN interfaces supporting either CANopen or SAE J1939
