DTS Miniature SLICE IP68 Data Acquisition System

The DTS miniature SLICE IP68 data acquisition system is designed to be embedded on or in test articles near the point of interest, eliminating long cable runs and the need for enclosures.

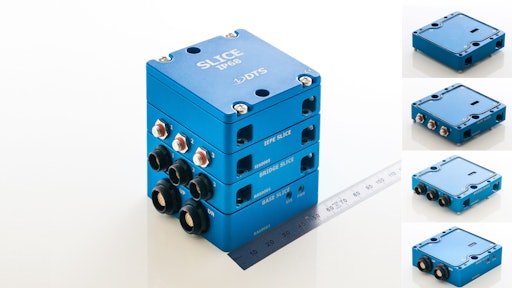

Slice Ip68 With Ruler Final

The SLICE IP68 data acquisition system from Diversified Technical Systems (DTS) is designed to gather physical measurements in extreme environments.

  • Rugged enclosure features special sealed layers and IP68-rated connectors, making it¬†impervious to shock, water and dust
  • Operates in temperatures from -30-80 C (-22-176 F)
  • Footprint of only 60 x 60 mm (2.4 x 2.4 in.)
  • Designed to embed on or in test articles, like a wheel or rotating shaft, without the need for waterproof enclosures or slip rings
  • Supports variety of external sensors including bridge and IEPE transducers for gathering measurements including acceleration, displacement, strain, pressure, temperature, voltage and more
  • Modular system which is user-configurable based on required sensor support, sampling rates and channel count
  • Three-channel sensor input layers can support up to 24 channels per stack, which can be daisy-chained for higher channel count tests
  • SLICE GPS Accessory Kit adds GPS time and location capabilities
  • Data writes directly to 16GB internal flash memory and supports extended recording times up to months
  • Standalone system features onboard signal conditioning, filtering and samples up to 500k sps/channel
  • Well suited for trucking and heavy equipment applications, including agricultural and other off-road equipment

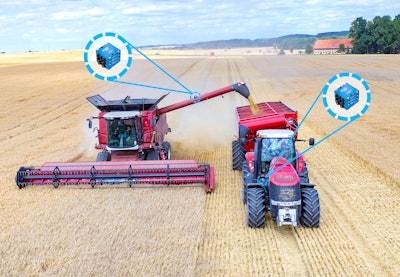

Combine Harverster With Ip68 (1)
