Delphin Technology 4-Channel ET-4 Expert Transient Data Acquisition System

The ET-4 Expert Transient data acquisition system is able to synchronously acquire multiple analog channels at sample rates up to 50 kHz.

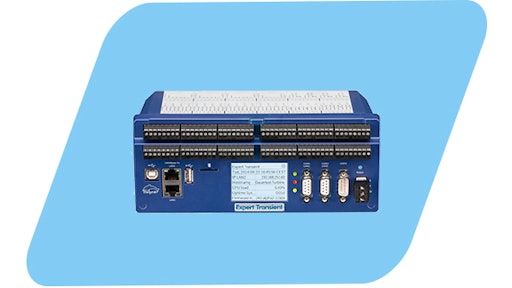

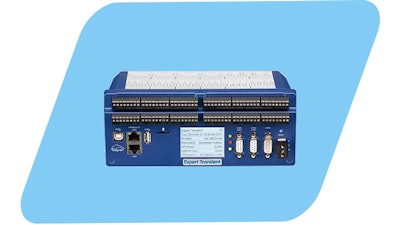

Et 4 Photo

CAS DataLoggers, in partnership with Delphin Technology, introduces an additional model of the Expert Transient data acquisition system, the four-channel ET-4.

  • Designed for data acquisition and fault diagnostics
  • Suited for smaller applications that only require a few analog input channels
  • Able to synchronously acquire multiple analog channels at sample rates up to 50 kHz
  • Can operate as standalone device recording to internal memory to capture both transient and periodical data
  • Enables precise identification of sequence of events in a malfunction
  • Measurement data can be recorded either continuously or according to trigger conditions and events including the ability to define triggers to record pre- and post-event data
  • Equipped with powerful FPGA technology that provides extensive on-board intelligence for calculations, logic, and data
  • analysis.
  • Includes four digital inputs to capture pulses, discrete inputs or digital triggers
  • Extension bus allows system to be extended to over 100 analog or digital inputs with high-speed synchronization protocols
  • Features 24 Bit A/D for high resolution measurements
  • NEW PRODUCT ANNOUNCEMENT
  • DataLoggerInc.com New 4-Channel ET-4 Expert Transient from Delphin 2
  • Includes four analog outputs and eight digital outputs
  • Programmable anti-alias filtering
  • Up to 14GB of local non-volatile memory
  • Support for USB, NFS, CIFS data storage, and FTP/SFTP file transfer
  • Gigabit Ethernet interface, optional 802.11 b/g/n Wi-Fi
  • RS-232, RS-485, CAN, ModBus RTU, ModBus TCP, and PROFIBUS interfaces
  • P o w e r f u l E x p a n s i o n S o f t w a r e :
  • Captured data can be displayed on PC in trend charts using Delphin’s ProfiSignal Go software
  • Designed for applications that require high speed acquisition of transient or periodic signals including fault diagnostics, evaluation of pressure surges and pulses, and shock and vibration measurement
