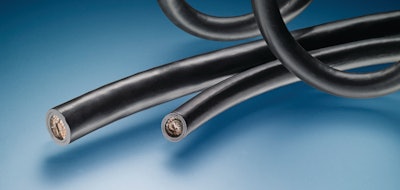

FDR25S Power Cable

TE Connectivity's FDR25S wire, a flexible diesel-resistant power cable, is designed for commercial and military aerospace, military ground systems and military marine industries.

• Cable can be bent and routed in extremely tight areas while helping to prevent wrinkling and cracking of the insulation; allows ability to run shorter distances, reducing the stress on the contact and reducing the mating and demating forces
• Ability to route in tight spaces may allow for a larger American Wire Gauge (AWG) size and eliminate the need to split power
• Helps withstand high-amperage and high-voltage conditions
• Fluid and arc resistant, including resistance to diesel fluids, hydraulic fluids, lubricating oils, cleaning fluids and deicing fluids
• Wire is made with a polyester-based material and has tin-plated conductors that help prevent the oxidation of copper
• Operates between -55 and 125 C
• Stability for up to 168 hours at 150 C
• Bends for four hours at -55 C
