Super Gel 9AO

Master Bond introduces its Super Gel 9AO urethane modified gel-like epoxy which provides thermal conductivity and electrical insulation.

Masterbond Supergel9ao 11289928
Grey Red2line270x49 10342602

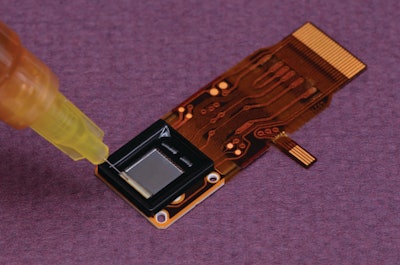

Primarily used for potting and encapsulation applications, Master Bond Super Gel 9AO is a soft, urethane modified gel-like epoxy that offers thermal conductivity and electrical insulation properties.

  • A two-part system
  • Can be used for bonding and sealing as it adheres well to a variety of substrates including metals, glass, ceramics, and many rubbers and plastics
  • Features low hardness of 20 to 30 Shore A
  • Able to encapsulate sensitive electronic components
  • Expensive parts are retrievable by cutting the compound with a sharp knife or razor blade without compound shattering
  • Softness allows it to withstand thermal cycling as well as thermal and mechanical shock
  • Serviceable from -100 to 200 F
  • Resists chemicals such as water, oils and fuels
  • Features 2 to 1 mix ratio by weight or volume and has a low to moderate viscosity
  • Offers working life of 6 to 8 hours at room temperature, depending on the quantity that is mixed
  • Cures at room temperature with little exotherm, enabling it to be cast several inches thick
  • Light gray in color
