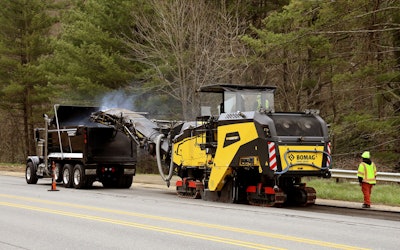

New BM 2200/65 Large Planer

With its lighter, compact and maneuverable design, the new BOMAG BM 2200/65 large planer has a modest, 58-inch (11,473-millimeter) milling radius—up to 14% smaller than competitive models—improves machine productivity in the field, increasing efficiency in tight-radius applications like small roundabouts and cul-de-sacs. Its conveyor offers a 16-foot (4,880-millimeter) discharge height plus larger, 130-degree conveyor slewing angle—65 degrees to the left/right of center—allowing material to be efficiently discharged into trucks on both sides of the mill. To facilitate transport, the conveyor retracts to a length 23.6 inches (600 millimeters) shorter than previous designs.

Meeting Tier 4 Final/Stage V emissions standards, the mill’s powerful 630-hp (470-kilowatt) engine effectively matches power with milling speed for greater operating efficiency. The slim profile of the BOMAG BMS15L quick-change cutting tooth holder system reduces resistance and delivers up to 20% fuel savings. The system design extends holder service life to lower costs. Offering a range of milling drum designs and a choice of three different rotor speeds to tailor rotor speed to the job, the BM 2200/65 planer can be used on a wide range of asphalt and concrete milling applications.
