WindShift Modular Fans with WindShift WSC, WSD and WSE Blades

Horton introduces the Windshift WSC, WSD and WSE blade designs to its line of WindShift Modular Fans to provide efficiency in low-restriction airflow applications.

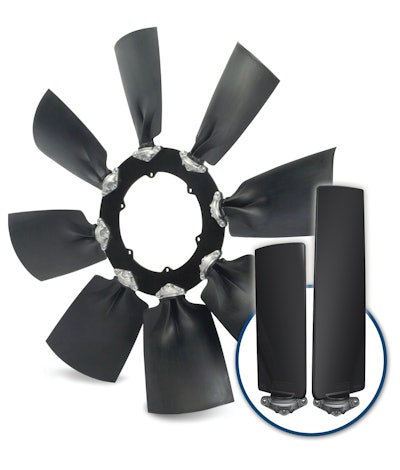

Horton Windshift 11131074
Horton Logo

Horton’s WindShift Modular Fan product line now features the WindShift WSC, WSE and WSD blade designs for maximum efficiency in low-restriction airflow applications such as HVAC, ventilation, stationary power generators, auxiliary coolers and others.

  • Fits in narrow, compact spaces
  • Blades have less deflection, resulting in increased durability
  • Provides greater design and manufacturing flexibility for higher performance and faster, easier testing and prototyping
  • Constructed with clamshell knuckles that clamp each blade to a 0.25-inch (6 mm) steel center disk, allowing blades to be set to a specific pitch angle for increased airflow
  • Options include clockwise or counterclockwise rotation and custom center disks for virtually any blade count, fan diameter and pilot or bolt circle pattern
  • Available in diameters from 18 to 60 in. (450 to 1525 mm) with 3 to 16 blades, equally spaced or staggered to modulate system noise
  • Straight- and tapered-bore adapters are available in addition to flat plate center disc mounting
  • Compatible with Horton fan drives
  • WSE has a swept blade shape making it well suited for Tier 4 and Stage IV compliant equipment
