Horton LS5 Engine Fan

Horton's LS5 fan features a diameter of less than 500 mm, suiting use with smaller engines.

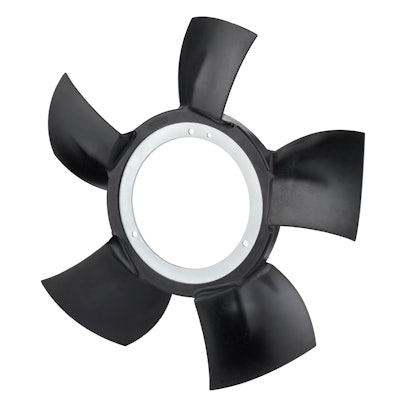

Ls5 Fan Angle Lr (1) (1)
Horton Logo

Horton Inc. introduces the LS5 fan which is specifically designed to reduce noise while providing maximum cooling performance for small industrial, construction and agricultural applications.

  • Utilizes technologies developed for larger equipment and applies it to smaller engine formats
  • Five-blade design delivers necessary airflow while taking up less physical space
  • Tailored to engine cooling needs of material handling applications like scissor lifts and forklifts
  • Can be used in a variety of smaller construction and agricultural tractors, as well
  • Features optimized fan blade design
  • Precise curvature of each blade reduces noise, makes it lightweight while ensuring proper torque
  • Additional noise and fuel savings are possible when paired with viscous fan drive
  • Fully variable drive design so fan spins only as fast as necessary, reducing fuel costs and allowing smaller engines to perform at peak efficiency
  • Molded fan measuring a diameter of less than 500 mm (19.7 in.)
  • Two options available, the LS5A which measures 380 mm (14.9 in.) in diameter and the LS5B measuring 430 mm (16.9 in.)
  • Each version weighs less than 2 lbs. (0.9 kg)

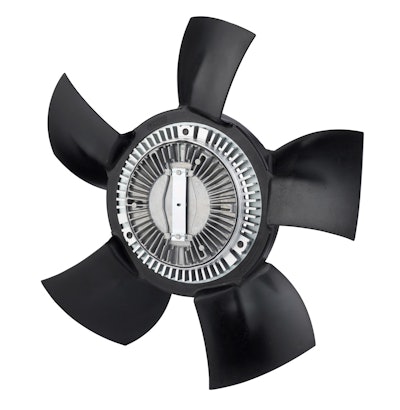

Vs121 With Ls5 Angled Normal
