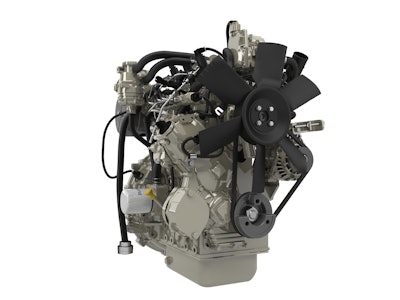

Perkins 403F-E17T Engine

Perkins launched its 403F-E17T engine at Agritechnica 2015 featuring a common rail direct injection system and full authority electronics for increased performance and installation flexibility.

December 2, 2015
Perkins Engines Company Limited
Perkins 403F E17T 565f06774f69c
Perkinslo 10108214

Perkins has launched the 1.7-liter, 3-cylinder turbocharged 403F-E17T engine which is a new addition to its 400 Series range.

  • Designed to meet U.S. EPA Tier 4 Final emissions standards
  • Features common rail direct injection and full authority electronics
  • Compact package size and sleek engine architecture, featuring a small diesel oxidation catalyst (DOC), enables use across many compact applications including small agricultural equipment, wheel loaders, hydraulic excavators and aerial lift platforms
  • Addition of common rail fuel system and full authority electronics provides increase in performance and allows greater flexibility in tailoring the engine to specific applications
  • Offers power output of 30 kW (40 hp) with a maximum torque of 125 Nm at 1,800 rpm, while rated speed is up to 2,800 rpm
  • Does not require air-to-air charge cooler, saving valuable space in very tight engine compartments and allowing OEMs to reduce installation cost and complexity
  • Provides class-leading torque, better load acceptance and smooth operation
  • Testing has shown an 11% improvement in specific fuel consumption (SFC) previously gained at Tier 4 Interim
  • Offers easy servicing as DOC-only aftertreatment is service free while fuel and oil filters have standard 500-hour service interval
