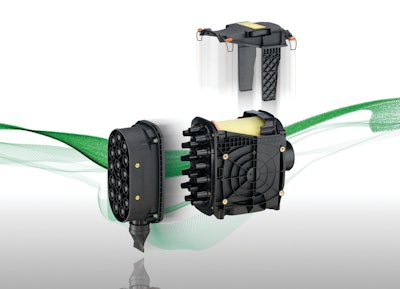

IQORON Series Air Cleaner

The IQORON Series air cleaner from MANN+HUMMEL offers flow rates from 4 to 14 cubic meters per minute.

Mannhummel Iqoron Aircleaner 10928662

The MANN+HUMMEL IQORON Series air cleaners are available in three different versions covering nominal flow rates from 4 to 14 m3/min.

  • Filter elements feature CompacPleat technology
  • Oval shape makes suitable for applications with limited installation space
  • For applications with high dust levels such as construction machines, agricultural machines and compressors
  • Offers high performance, low installation space requirement and easy servicing
  • Features efficient pre-separator with a multi-cyclone block
  • Service switch can be integrated in the housing to monitor the filter load
  • Includes mounting points integrated in the housing
  • Available with a dust discharge valve or scavenging depending on the installation space
  • Version with dust discharge valve achieves a pre-separation efficiency up to 90% and with scavenging up to 94%
  • Access for servicing is either from the side or front
  • CompacPleat filter element offers a larger filter surface area and longer service life in a more compact installation space in comparison to conventional filter elements
  • Element is metal free and therefore fully incinerable
  • Axial bracing ensures filter is sealed under all operating conditions
