Voss Urea Quality Sensor

The VOSS urea quality sensor provides a urea concentration range of 5 to 62.5%.

October 20, 2015

VOSS Automotive Inc.

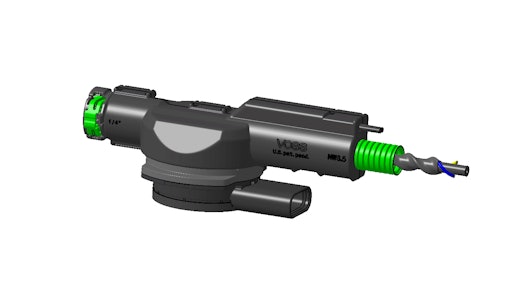

Sv241 N Eltek Q Sensor Rohr 4x1 03 582f2243e1e7e

The urea quality sensor from VOSS Automotive is designed for use in diesel engine SCR aftertreatment systems.

Optimized for OEM specifications
Fully integrated with VOSS Quick Connector
Will not negatively impact SCR performance
Features supply current of 40 mA at 12V or 30 mA at 24V
Urea concentration range of 5 to 62.5%
Measuring temperature range -8 to 60 C
Maximum allowed pressure is 15.5 bar
Features CAN J1939 communication interface

Fill out the form below to request more information about Voss Urea Quality Sensor
