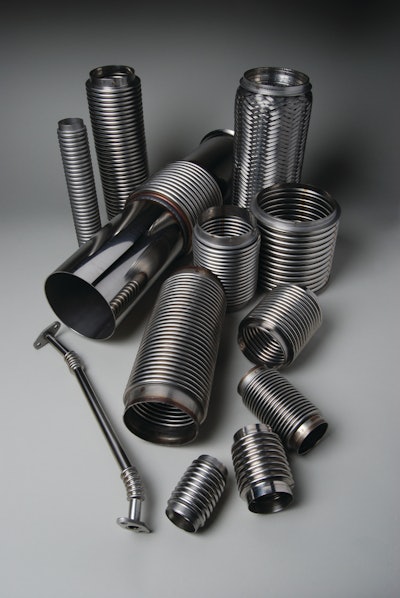

Hydroformed Bellows Assemblies

Duraflex Inc. introduces its hydroformed bellows assemblies which can be hydroformed using a variety of materials.

File3 10635735
File3lr 10629021

Duraflex Inc.’s Hydroformed Bellows can be hydroformed from welded or seamless tubing. Materials commonly hydroformed include aluminum, hastelloy, stainless steels, copper basealloys, inconel, titanium, nickel and monel.

  • Wall thickness of close tolerance welded tubing is fabricated from .004 in. to .036 in. material
  • Seamless tubing wall thicknesses range from .002 in. to .020 in.
  • Inside diameter ranges for from 1/4 in. to 24 in.
  • Length is restricted to a single live length of 36 in.
  • Motion requirements of application dictate number of convolutions, which can range from one to several hundred
  • Multiple ply configurations can be created to increase pressure ratings or reduce effect of vibration induced fatigue
  • Special geometries or shapes can be created, ranging from shaped cones to elliptical or even rectangular net shape products
  • Certifications include ISO 9001:2000, AS 9100B, ASME Section IX, TUV, MIL and more
