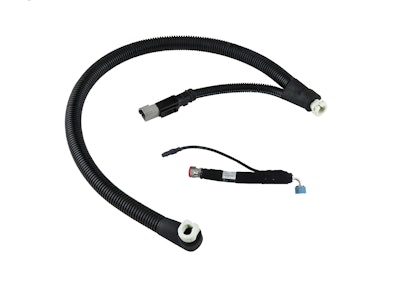

Parker EPDM- and Nylon-Core SCR Hoses

At IFPE 2017, Parker Parflex Division will exhibit its EPDM- and nylon-core SCR hoses which lock in the heating element with an extruded sheath for uniform heating.

Ifpe 2017 Press Fcg Pfd Scr Hose Image 20170118 5888be28af9b0
Parker Logo Big 10933187

The Parflex Division of Parker Hannifin Corp. now offers a standard line of SCR Hose for on-vehicle DEF transfer with EPDM or nylon core tubes to meet new Tier 4 specifications being implemented in 2018.

  • Heated hoses designed for heating and conveying DEF throughout SCR (selective catalytic reduction) system on commercial vehicles
  • Eliminates problems associated with low ambient temperatures, such as condensation, coagulation or freezing of liquids within hose
  • Locks in heating elements with patented, extruded sheath for added protection and long-lasting uniform heating
  • Assemblies are optimized based on customer performance requirements and dosing system specifications
  • Thermal performance is balanced to ensure even heating throughout assembly length
  • Power densities can be customized for different dosing control systems
  • Thaw performance and final hose assembly lengths are limited only by maximum available power of the dosing system
  • Standard assemblies are available with 4 mm (EPDM core [0.16 in.]), 5.5 mm (EPDM core [0.22 in.]), or 6 mm (nylon core [0.24 in.]) I.D.
  • Each assembly is electrically tested, pressure tested and cleaned before shipment
