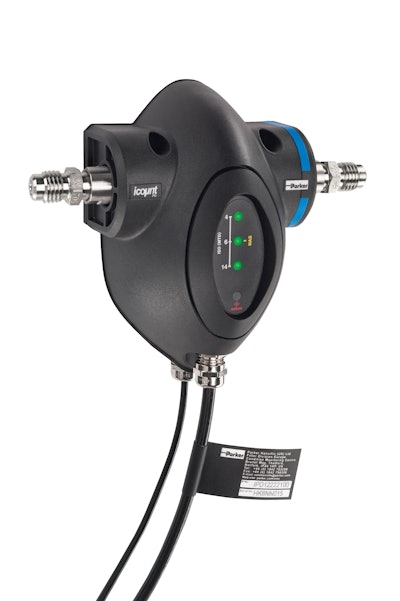

Parker Hannifin announces the Icount PD online particle detector, an ideal solution for monitoring the condition of hydraulic oils in mobile and off-highway applications.
- Compact and lightweight
- Features laser-based monitoring of system contamination trends
- Early warning LED or digital display indicators for low, medium and high contamination levels
- Optional moisture percentage RH LED indicator
- Environmentally friendly glass-filled nylon materials
- IP66 ingress protection rating
- Output options include RS232 and CANBUS connectivity, 4-20mA and 0-5v analogue outputs, and relay contacts, which can switch 5A at up to 24v DC
- Minimum sample time of three seconds
- Can be used at flow rates from 10-160mL/min and at line pressures from 2-420 bar
