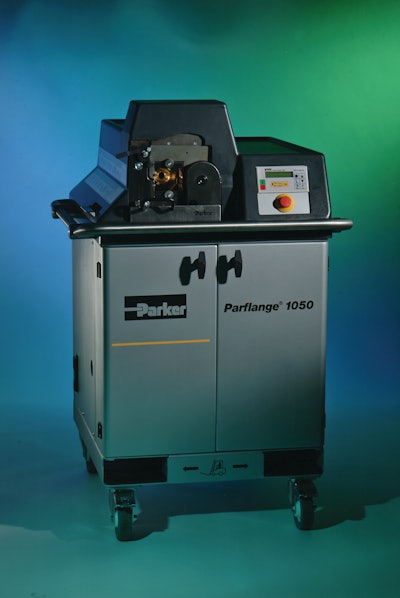

Parker Hannifin's Tube Fittings Division has introduced the Parflange 1050 workstation capable of producing both flat face flanges and 37 degree flares for tube assemblies.
• Flange/flare capabilities from 1/4 in. to 1-1/2 in. (6 mm - 38 mm) tube OD
• Automatic die-clamping mechanism with protective operator safety shield
• Workstation setup with tooling cabinet below the unit holds up to 10 pin and die sets
• Automatic cycle start triggered by tube insertion
• Flanging and flaring pin and die sets can be quickly changed with minimal manual adjustments
• Easy mobility by wheels, forklift or crane
• Flange/flare capabilities from 1/4 in. to 1-1/2 in. (6 mm - 38 mm) tube OD
• Automatic die-clamping mechanism with protective operator safety shield
• Workstation setup with tooling cabinet below the unit holds up to 10 pin and die sets
• Automatic cycle start triggered by tube insertion
• Flanging and flaring pin and die sets can be quickly changed with minimal manual adjustments
• Easy mobility by wheels, forklift or crane
