787TC and 797TC Compact Spiral hose

Parker's Compact Spiral hose has half the bend radius of standard products.

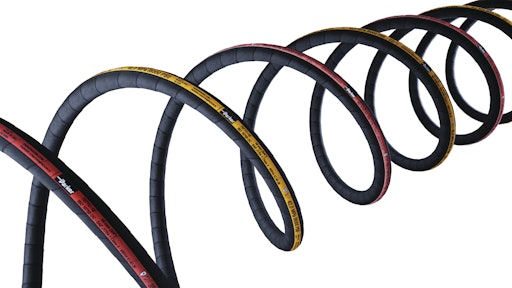

Csh 10093339
Parker Logo Big 10933185

Parker Hose Products Division's? 787TC (5,000 psi) and 797TC (6,000 psi) Compact Spiral hose is strong like a spiral and can bend like braided hose.

  • New inner tube makes it possible to refine, redesign and significantly reduce overall hose construction
  • Features almost 30% smaller OD and up to 26% lighter weight
  • Bend radius is 50% better than current industry standards
  • Bends can begin sooner, reduces total amount of hose needed by 20 to 55%
  • Requires third less effort to bend
  • Includes highly abrasion-resistant hose covers (80-times more abrasion resistant compared to standard rubber covered hose)
  • Flex impulse tested and tested up to 2,000,000 impulse cycles - four times the SAE and twice the ISO standard
  • Improves flow characteristics while maintaining same OD size, or provides equal flow characteristics by maintaining ID size while reducing OD size
  • More direct routing options require less hose, reducing inventory amount of hose needed as well as shipping and packaging costs
  • Available sizes: -8, -10, -12, 16, -20, -24 and -32
