Parlfex eXtreme Duty Hose

Parker's formed eXtreme duty hose “snaps” into place in the tightest of spaces.

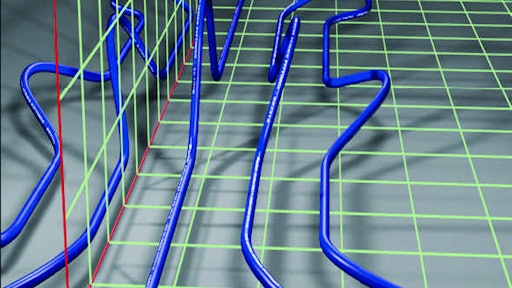

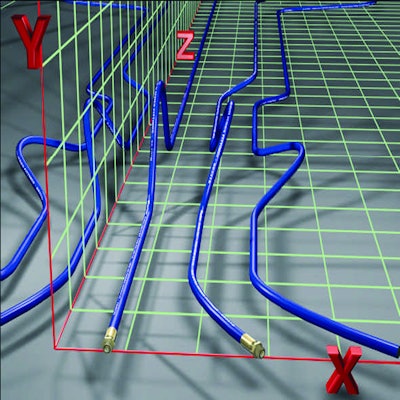

Formedhose 10254238
Parker Logo Big 10933187

Typically, routing hoses around abrasion points and through tight spaces requires operators to twist and bend hoses to fit, often creating a tangled nest of hose routings. Parflex eXtreme Duty Hose (XDH) from Parker Hannifin Corporation is designed to help users easily route hoses over, under and through confined spaces.

  • Shaped to fit design of specific application
  • Formed to fit routing path and quickly snap into place, eliminating risk of damage and speeding up installation process
  • Works for repeatable hydraulic applications
  • Eliminates use of hard, metal tubes which are heavy and difficult to install
  • Available in 1/4 in., 3/8 in. and 1/2 in. I.D.
  • Operates in temperatures ranging from -65 F to 300 F (-54 C to 149 C)
  • Maximum operating pressure for 3/8 in. and 1/2 in. is 4,000 psi (276 bar) and for 1/4 in. is 5,000 psi (350 bar)
