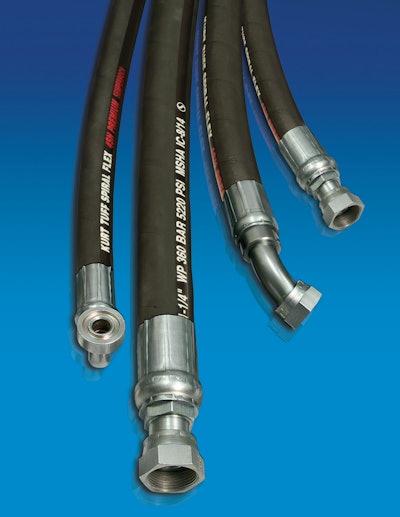

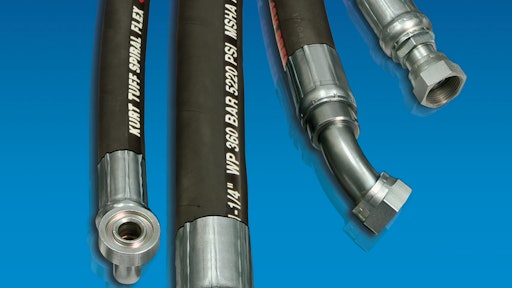

Kurt Tuff Spiral Flex Hydraulic Hose

Kurt Hydraulics introduces its Kurt Tuff Spiral Flex Hydraulic Hose featuring four spiral layers of high tensile steel wire braid inside the hose for reinforced durability.

March 18, 2013
Kurt Hydraulics
Kurthydraulics Kurttuffspiralf 10895653

Kurt Hydraulics’ Kurt Tuff Spiral Flex Hydraulic Hose is engineered for rugged, high pressure hydraulic applications up to 6,235 psi.

  • For applications with minimal space, design provides bend capacity of 8.25 to 9.5 in. depending on hose diameter selected
  • Reinforced internally with four spiral layers of high tensile steel wire braid
  • Features durable oil-, ozone- and abrasion-resistant synthetic outer cover
  • Offers 10 times the abrasion resistance compared to standard hose cover
  • Impulse tested for up to 1,000,000 cycles
  • Withstands temperatures from -40 to 250 F and meets flame resistant MSHA designation
  • Meets or exceeds requirements of SAE DIN 20023
  • Available in diameters of 3/4 in., 1 in. and 1 1/4 in. I.D.
