Liebherr 350 Bar Hydraulic Cylinders

During CONEXPO 2017, Liebherr introduced its 350 bar hydraulic cylinders which are available in 20 different piston diameters from 100-220 mm to meet varying application needs.

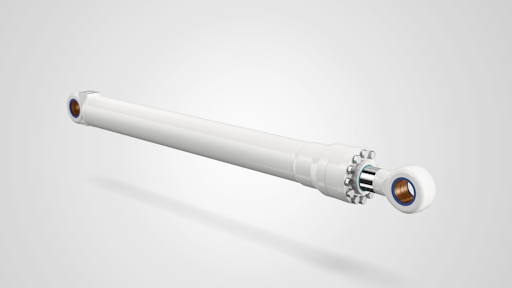

Liebherr Hydraulic Cylinders Attachment Cylinder 300dpi 58da86df22d10

Liebherr presents its 350 bar hydraulic cylinder series-production range for the first time to the North American market.

  • Designed for operation under harsh environmental conditions
  • Offers maximum flexibility
  • For operations in pressure range up to 350 bar (5,076 psi), and optionally up to 380 bar (5,511 psi)
  • Can be used in mobile or industrial environments
  • Individual products are easily configurable using standardized components, such as predefined rod diameters of 65-150 mm (2.56-5.91 in.)
  • Up to 20 different piston diameters between 100-220 mm (3.94-8.66 in.) can be combined with two piston rod diameters, enabling strokes up to 2,300 mm (90.55 in.) to be achieved
  • Option to expand each hydraulic cylinder variant
  • Wide range of cushioning systems, piston rod coatings and integrated sensors, such as robust position transducers or pressure sensors are available
  • Individual cylinder variants available to meet customer requirements
  • Sealed utilizing dual sealing concept comprising of primary and secondary seal, reducing “stick-slip” effect, preventing leakage and making low maintenance
  • Optimized lubrication surfaces ensure good emergency running characteristics
