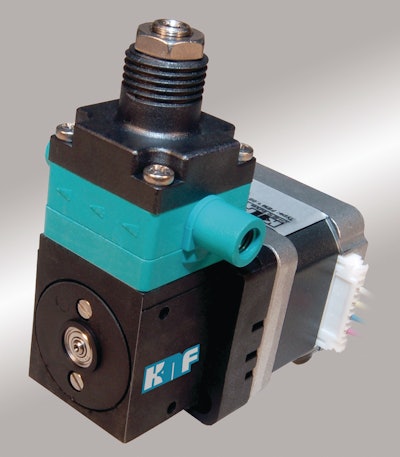

KNF Neuberger's latest KNF diaphragm dosing pumps for liquids (Types FEM 1.02 and FEM 1.09) offer accuracy and repeatability over a long service life.
- Integrate simple 2-phase stepper motors engineered for optimized levels of controllability and cost efficiency
- Optional and adaptable control module easily integrated into any system can expand control potential to suit particular application requirements
- Typical applications include industrial and emissions dosing systems, fuel cells, semiconductor processing
- The FEM 1.02 pump achieves flow rates from 0.2 ml/min. to 20 ml/min.; and FEM 1.09 pump from 0.9 ml/min. to 90 ml/min.
- Both versions are small (62 mm x 75 mm x 63 mm), cover a wide dosing range (1:100), operate oil-free with virtually no maintenance, and can serve reliably for more than 10,000 hours.
- Self-priming to 8.5 in.Hg
- Demonstrate consistency over time (1% repeatability)
- Exhibit excellent leak-tightness and chemical resistance
- Ports are available in UNF ΒΌ-28 or compression fittings
