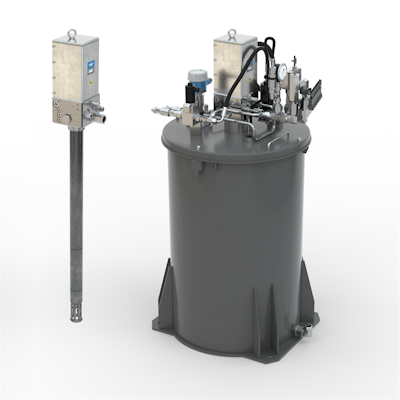

SKF BPH30 Hydraulic Barrel Pump

SKF has developed the BPH30 hydraulic barrel pump for large automatic lubrication systems, which helps reduce the risk of machinery failure.

• Available with or without sensors and can be configured to individual needs
• Delivers grease to large automatic lubrication systems such as single-line, progressive or dual-line, as well as filling processes
• Target applications include excavators, loaders, haul trucks and other heavy machinery used in the construction and mining industries
• Designed to work reliably under demanding conditions
• Pump head is fully encased which reduces risk of damage during tough operations
• Constructed from heavy-duty materials, making it robust
• Compact design allows it to be mounted in tight spaces
• Operating temperature range from -40-80 C (-40-176 F) and accepts greases up to NLGI 2
• Single outlet which can be positioned on the left, right or front of device
• Three-seal design helps prevent leakage of both hydraulic oil and lubrication grease, maintaining safe and reliable operations while minimizing the risk of contamination
• Leakage indicator provides clear visual confirmation that the sealing system is working
• Built-in sensors monitor oil pressure, temperature and piston movement, which helps to avoid sudden machine failure
• Flow rate and reverse pressure can be adjusted according to the needs of the application
