F12 FERRA Hydraulic Pump

Concentric introduces its F12 FERRA hydraulic pump which offers high strength and increased power density.

Ferraflyer 10351654
Concentricablogocmyk 10346659

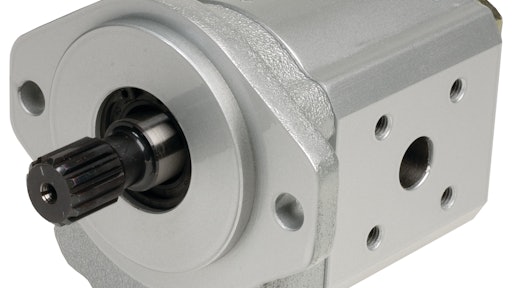

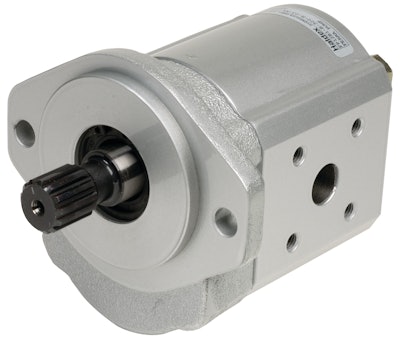

Concentric AB, Hof Germany and Rockford, IL, introduces the F12 FERRA pump, a rugged two-piece pump ideally suited for construction equipment, materials handling and agricultural machines.

  • Features cast iron construction that is robust across a broad temperature range
  • Housing and front cover are cast iron
  • Eliminates need for rear cover and integrates bearings into housing and flange to make unit more compact
  • Increases power density and offers better installation characteristics compared with conventional designs¬†
  • Gear profile is optimized for reduced pulsation and high power density
  • Two pressure plates ensure high volumetric efficiency at low speeds
  • Offers performance at low speeds (500 rpm)
  • Suitable for high-flow implement and steering circuits, and fan drive applications
  • Available with displacements from 16 to 41 cc/rev and pressures up to 276 bar (4,000 psi up to 30 cc/rev)
  • Can be used as single units or as multi-unit assemblies in combination with multiple pumps
  • Modular design allows a wide choice of flange, shaft and port options
