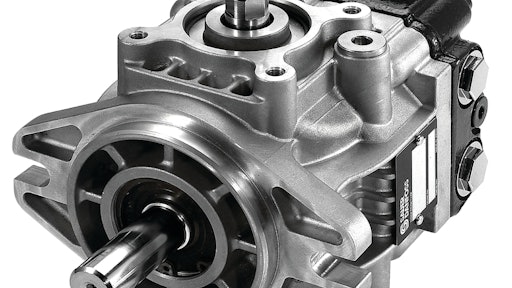

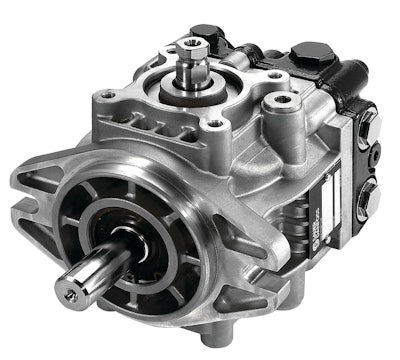

Sauer-Danfoss introduces the DDC20 — a 20 cm3 direct displacement control pump — to its lineup of pumps and motors for transmissions on mobile equipment.
- Compactly designed, measuring 183.5 mm in length
- Simplifies circuit design and allows for easy installation in space-constrained equipment while ensuring ample room around pump
- Offers efficiency, low noise and flexibility
- Male slipper design reduces friction on both piston and bore of cylinder block to reduce oil temperature, improve fuel efficiency and extend oil life
- Optimized valve plate design reduces noise to 78.5 dBa while operating at 200 bar, 2,000 rpm
- Journal bearing in trunnion helps reduce operating vibration and ensures comfortable human-machine interface
- Performs in a wide array of applications
- Can be applied with most Sauer-Danfoss low speed high torque motors as well as axial piston motors such as Series 40 and LK motors
- Available with a wide range of options, including various high pressure relief valves
- Optional auxiliary pad accommodates future conversions and additional components
- Loop flushing and bypass valves are available, and promote ease of use and reliability, allowing a machine or load to be moved without rotating pump shaft or engine
- Well-suited for zero-turn mowers, small rollers, sweepers, utility vehicles, sprayers, trenchers, compact tractors and more
