4PD10L Four-Pad Pump Drive

Durst announces the release of its four-pad pump drive designed for applications with space constraints.

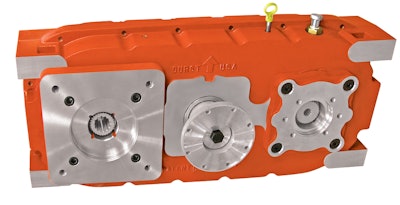

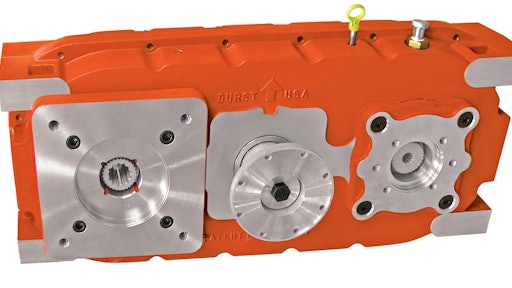

4pd10l Front 10690082
Durst Logo Cmyk

Durst has released a four-pad pump drive especially designed for applications where space is limited. The 4PD10L delivers a high-performance, cost-effective drive solution in construction and mining equipment.

  • Features low profile and torque-carrying capacity
  • Includes inline output configuration with 10.5 in. gear centers
  • Incorporates simple, one-piece design for easier assembly and installation
  • Maximum torque rating is 1,995 lb.-ft.
  • Meets SAE and AGMA standards
  • Measures 8.12 in. deep x 16.5 in. high x 37 in. wide
  • For applications where tight engine compartments would rule out a standard four-pad arrangement
  • Compatible with any SAE pump shaft and can be used as a drop-in replacement for other manufacturers’ drives
  • Runs on heavy-duty ball bearings
  • Internal spline enables quieter operation
  • Bearings and gears are self-contained within housings
  • Keeps oil constantly flowing through bearings and provides for wet spline operation, even at startup
  • Pump pads and input adapters can be easily changed without disturbing bearings
  • Single seal, bearing, gear and adapter group design minimizes parts to inventory
