Bosch Rexroth A10VOH Axial Piston Variable Pump

Set to be introduced at bauma 2019, the A10VOH is designed for a wide range of applications with a nominal pressure of 320 or 350 bar.

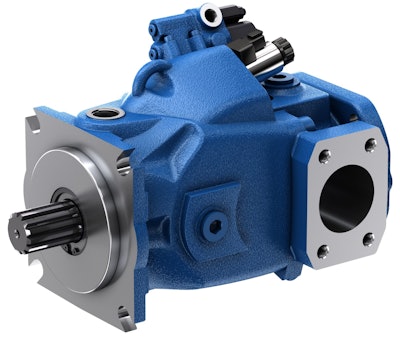

Photo Pi 004 19 Bauma A10 Voh
Bosch Rexroth
Rexroth Logo 4 C

The Rexroth A10VOH (series 60, size 145) axial piston variable pump can be used for applications which could previously only be handled by high-pressure units.

  • Suited for demanding tasks which require a high nominal pressure and compact design
  • Features high-speed self-priming
  • Permissible rated speed of 2,300 rpm
  • Maximum displacement of 145 cmÑ – without any impellers
  • Enables users to achieve efficient operation in “light heavy-duty” application areas
  • Permissible nominal pressure of 320 bar (4,641.2 psi) in corner power operation at maximum swivel angle and rotational speed
  • Permissible nominal pressure increases up to 350 bar (5,076.3 psi) if swivel angle is reduced
  • Suited for use in various applications, including steering drives, hydrostatic fan drives and working hydraulics
  • Lightweight and compact, requiring same installation space as Rexroth A10VO (series 31, size 100)
