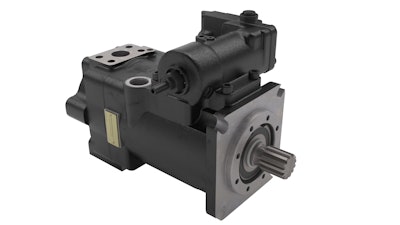

Oilgear PVG-180 Axial Piston Pump

Oilgear's PVG-180 axial piston pump produces 30% more power than the previous design.

Pvg180 Fullcolor effects Result

Oilgear introduces its latest PVG Series pump, the PVG-180.

  • Open-loop, variable-displacement, axial piston pump
  • Suits applications which require high response and speed in rugged environments
  • Provides fast control response
  • Thrives on low viscosity fluids
  • Available in a variety of control and porting options
  • Fits into the space-constrained applications¬†
  • Produces 30% more power than PVG-150 while fitting in the same size frame
  • Features proprietary Hard-On-Hard Technology which provides greater resistance to contaminants, as well as higher operation pressures from comparable models
  • Withstands continuous use without worrying about corrosion
  • Maximum displacement is 10.98 in3/rev (180.0 ml/rev)
  • Rated continuous pressure of¬†5,000 psi (344.8 bar) and peak pressure of 5,800 psi (400.0 bar)
  • Flow rate of 78.0 gpm (295.3 l/min)
  • Maximum speed is 2,400 rpm
  • Power input is 260 hp (193.9 kW)
