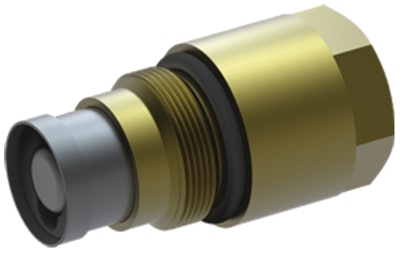

Bucher Hydraulics adds a size 10 cooler-bypass thermostat valve to its product range. The screw-in cartridge for temperature-dependent bypass control with an integrated excess pressure function.
- Temperature controlled
- M27x2 threads suitable for installation straight into the cooler unit or with line mounting housings
- Route flow straight to tank or through the cooler depending on temperature; less than 60 C, flow is directed to tank; more than 60 C, flow directed through cooler
- External parts of the cartridges are zinc plated and chromited (CrVI−free)
- Max. operating pressure 15 bar
- Max. flow rate 120 liters/min.
- Integrated pressure relief function
