SV15 High Flow Solenoid Valves

Comatrol introduces its SV15 High Flow Solenoid Valves which offer flows up to 60 LPM.

Comatrol Sv15solenoidvalves 10737385
Comatrol018 10714694

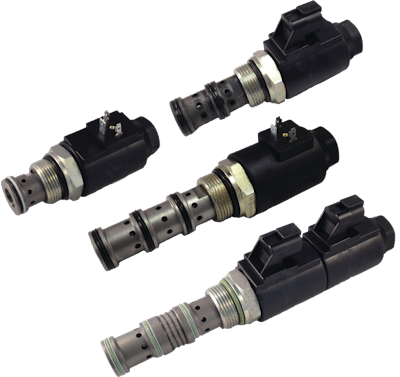

Comatrol introduces the SV15 High Flow Solenoid Valves. This collection of 11 cartridge valves offers flows up to 60 LPM (16 GPM), providing customers with a technical alternative to some CETOP D03 (NG6) valves.

  • Larger cavity allows for higher flow capacity
  • Enables HIC designers to make larger passageways in manifolds, thus reducing pressure losses in system
  • Features maximum flow capacities of 50 to 60 LPM (13 to 16 GPM)
  • Pressure rating of 210 bar (3,000 psi), based on NFPA fatigue test standards (at 1 million cycles)
  • Optional features include 300 micron filter to protect actuator from large particles, push-pin manual override, coils with diodes and AC current
  • For incorporation on machine control architecture utilizing Sauer-Danfoss PLUS+1 hardware
