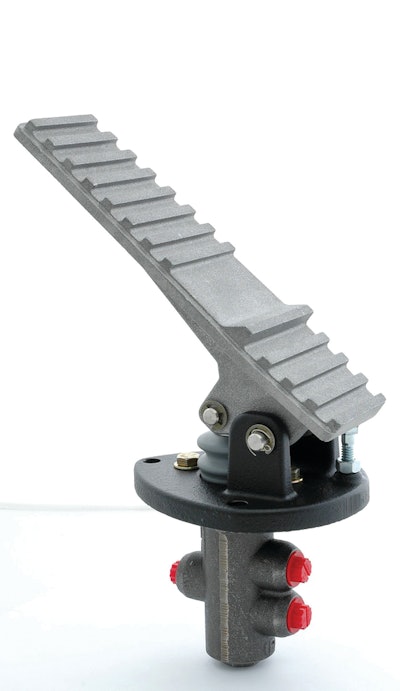

Pedal-Actuated Single Modulating Valve

MICO's Single Modulating Valves are a closed center spool design.

Mico 105 10857626
New Mico Png 10724427

MICO's Single Modulating Valves are a closed center spool design. When used with a properly sized accumulator and a MICO Accumulator Charging Valve, these valves provide normal and emergency power-off braking in a variety of open-center, closed-center, and load sensing hydraulic systems.

  • Modulated output pressure up to 206.8 bar (3,000 psi)
  • Maximum input pressure of 206.8 bar (3,000 psi)
  • Standard brake pressure settings are in increments of 3.5 bar (50 psi)
  • Available as valve only, push rod actuated, lever actuated, and pedal actuated
  • Valves can also be designed with options such as built-in switches, potentiometers, etc.
  • Compact size for use in restricted space
  • Oil immersed spring cavity protects return springs from outside contaminants
  • Spool design provides smooth modulation at all pressures
  • Provides "pedal feel" proportional to brake system pressure
