Poclain Hydraulic Dual Line Brake Valves for EU 2015/68 Regulation

The Poclain Hydraulics VBT and EMB brake valves distribute braking force between a tractor and trailer to help equipment meet the EU 2015/68 regulation for on-road braking.

Poclain Brake Valves
Jpeg Logo Poclain Hydraulics

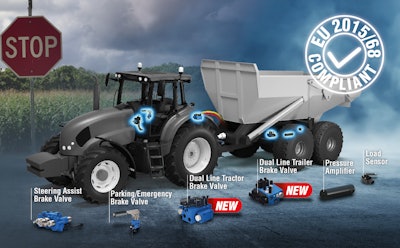

Poclain Hydraulics upgrades its braking offering to include the VBT for tractors and EMB for trailer or towed implements which comply with the EU 2015/68 regulation.

  • Distributes braking force between the tractor and the trailer
  • All-terrain, mud-resistant alternative to pneumatic technology
  • Equipped with electronic control
  • Compatible with current market solutions
  • European 2015/68 regulation steps up requirements for on-road braking for tractor/trailer set-ups by enforcing dual line braking to activate trailer brakes even if it uncouples from the tractor

VBT solution for tractor-mounted dual line braking

  • Integrates electronically controlled valve that modulates pressure sent to trailer braking system based on  brake pedal force
  • Manages control and supplementary lines of trailer regardless of the braking system used: single-line, dual-line or CUNA type for Italy
  • One valve body fits all tractor sizes
  • Braking force adjusts using electronic settings
  • Offers four enhancements: ordering the shut-off of control line in the event of a leakage, securing parking brake test functionality, filling the trailer accumulator, and synchronizing tractor and trailer emergency braking
  • Configurable for “Hill Start” (automatic parking brake actuation when the tractor stops on an uphill grade) and “Parklock” (automatic parking brake actuation when the ignition is turned off)
  • System can be set to brake the trailer when tractor decelerates if the tractor runs with a CVT (Continuously Variable Transmission)

EMB solution for trailer-mounted dual line braking

  • Integrates valve with embedded electronic control
  • Suitable for single, double or triple axle trailers
  • Braking force adjusts to the trailer weight and force applied to the brake pedal
  • Easy to integrate with weight information from analogic or CANbus signals
  • Compatibility of the system allows trailer manufacturers to choose the sensor used to transfer load information
  • Trailers with integrated brake actuators whose volume exceeds 140 cc (8.5 cu. in.) upgrades system with a pressure amplifier that can charge the accumulator using low pressure available on the supplementary line
  • Charging is fully automatic and transparent for the driver
