Height Control Valve

March 31, 2008

Hendrickson Trailer Suspension

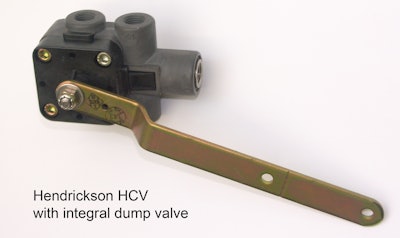

Heightcontrolvalve 10057394

Hendrickson Trailer Suspension Systems unveils an integral height control valve (HCV) and automatic dump valve to help maintain outstanding load stability over the road and facilitate loading dock activity.
• High-flow design for rapid dump and fill times
• Triggered by trailer parking brake, automatically discharges with the setting of the brake and begins air-up of springs with release of brake
• Includes 3/8-in. tube fittings and bolted linkage

Fill out the form below to request more information about Height Control Valve
