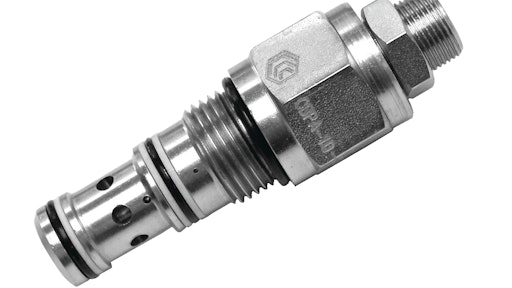

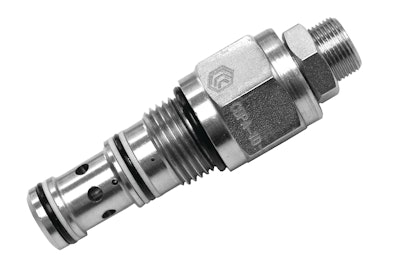

Bucher Hydraulics, formerly Command Controls Corp., offers a line of 5,000 psi, cartridge style counterbalance valves (also known as over-center valves or load holding valves) that fit into the industry accepted common cavity.
• Available in size #10, #12 and T11A
• The direct acting, poppet type, counterbalance valves handle operating pressures up to 5,000 psi and flows of 10, 20 or 36 gpm
• Hysteresis of less than 2% from crack to re-seat
• Offered only in a 4:1 pilot ratio
• Full flow relief function and free reverse flow check
• Unique piston pilot design purges all of the air out of the pilot line automatically and allows hot hydraulic fluid to the pilot piston at all the times
