IMH 5.5mm Shuttle Valve

September 30, 2009
The Lee Company
Imh5 10058535

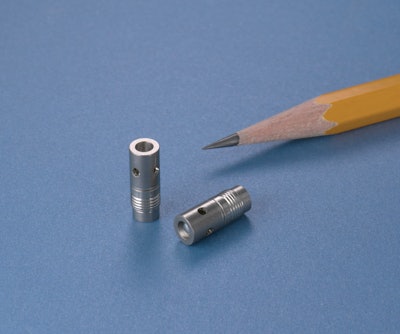

The Lee IMH 5.5 mm Shuttle Valve is a miniature, economical and reliable solution to the problem of hydraulic isolation in manifolds.

  • Compact, non-detented, selective design
  • 5.5 mm in diameter and 12.2 mm long
  • Ideal as a signal for auxiliary functions, such as hydraulically released, spring-applied brakes and load sensing applications
  • 100% performance tested for flow and leakage
  • Constructed entirely of stainless steel
  • Installs easily into a drilled hole, eliminating the need for threads, o-rings or in-house designs



Request More Information
Fill out the form below to request more information about IMH 5.5mm Shuttle Valve
