Miniature Cartridge Check Valves

September 30, 2009

The Lee Company

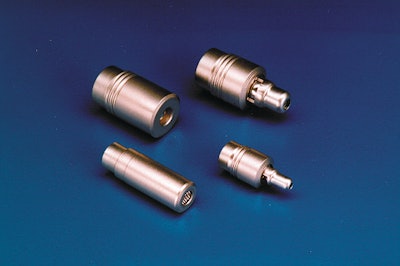

Miniaturecartridgecheckvalves 10058539

The Lee Company's miniature 855 Series and 558 Series Cheks are miniature, threadless, cartridge-style check valves ideal for high volume applications.

Available in 5.5 mm and 8 mm diameters
All stainless steel construction
Long-term performance up to 28 Mpa (4,000 psid)
Flow rates are 0.4 gpm and 1.3 gpm at pressures up to 25 psi
Both valves are compatible with hydraulic fluids, brake fluids, fuels and oils
Available in forward and reverse flow directions
No O-rings or threads are required

Fill out the form below to request more information about Miniature Cartridge Check Valves
