IMH Miniature Insert Orifices

September 30, 2009

The Lee Company

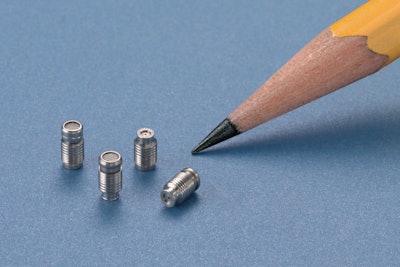

Miniatureinsertorifices 10058545

The Lee Company offers miniature, calibrated IMH Insert Orifices for both liquids and gases that can be used in hydraulic controls and commercial and industrial applications.

Available in 2.5, 5.5 and 8 mm diameters
Cartridge-style orifices
100% flow testing to ensure that every orifice is within ±5% of its nominal flow rate
Constructed entirely of stainless steel
Orifice sizes as small as 0.002 in. (0.05 mm)
Certain models are offered with an integral safety screen

Fill out the form below to request more information about IMH Miniature Insert Orifices
