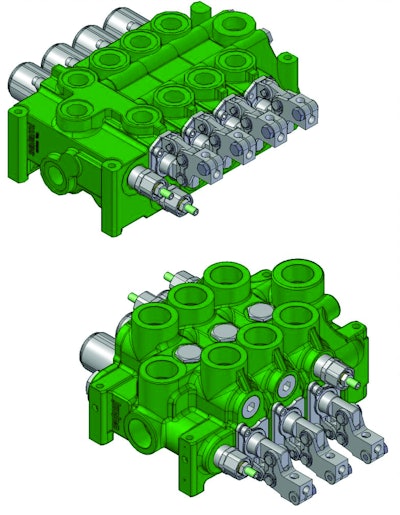

VD10A - VD12A - Directional Control Valves: Sectional types. Salami Hydraulics.

  • Cast iron made (inlet module or inlet plus working module, single working module, outlet module).
  • Parallel circuit, load check valve protection on each section. (Series line realized inside of the spool with dedicated lcv.).
  • Tandem circuit, load check valve protection on each section.
  • Possibility of power beyond configuration.
  • Spool construction in steel, nickel plated to obtain a higher surface hardness and a better corrosion resistance.
  • Several types of spool: double, single acting, spool motor, float position etc.
  • Available spool with overcenter valve built-in, available spool with hydraulic kick-out built-in.
  • Minimum tolerance between the spools and the body to obtain a minimum internal leakage.
  • Several spool positioning devices.
