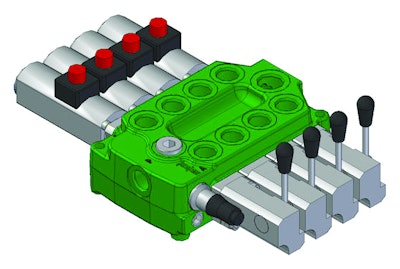

VDM6 - Directional Control Valves: Monoblock types - from Salami Hydraulics.
- Cast iron monoblock construction from 1 to 7 working sections.
- Parallel circuit, load check valve protection on down-stream of the pressure "P" line.
- Tandem circuit, only the first working section, lcv protection + lcv protection on down-stream of the "P" line.
- Possibility of power beyond.
- Spool construction in steel, hardened and nichel-plated to obtain a higher surface hardness and a better corrosion resistance.
- Several types of spool: double, single acting, spool motor, float position, regenerative position etc.
- Available spool with overcenter valve built-in, available spool with hydraulic kick-out built-in.
- Minimum tolerance between the spools and the body to obtain a minimum internal leakage.
- Interchangeability of all the spools.
- Several spool control devices and spool positioning devices.
