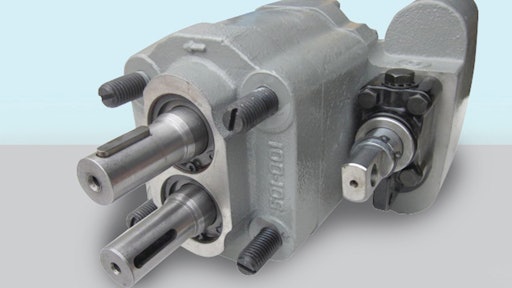

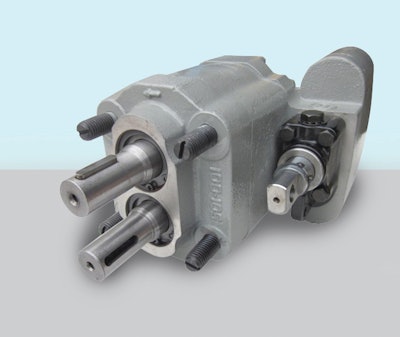

C101/C102 Cast Iron Dump Pump/Valve Combination

FluiDyne Fluid Power's C101/C102 Dump Pump/Valve Combination is well suited for use in the dump truck and trailer industry.

Dumppump003wbkgrnd2 10656285
Fluidynelogocs4 10656427

FluiDyne Fluid Power is releasing its Dump Pump/Valve Combination, available as a remote mount (C101) or PTO direct mount (C102).

  • Interchangeable with competing brands
  • Available with 2.0 in. gear width (39 GPM) or 2.5 in. gear width (48 GPM), right or left hand rotation, manual or air shift actuation
  • Provides speeds up to 2,400 rpm
  • Features cast iron construction
  • Includes full flow adjustable main relief valves to protect pump and cylinder from overloading and shock loads
  • Three position valve assembly controls raising, holding and lowering of single acting cylinder
  • Can be cab operated using mechanical cable actuation or air shift control
  • Allows either two or three line type installation
