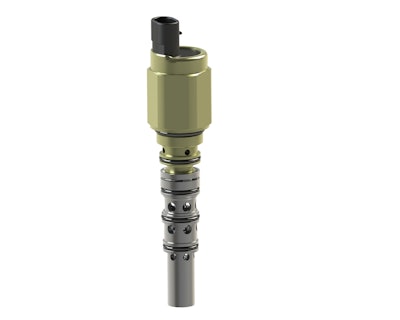

FEMA Corp. Transmission Control Valve

FEMA Corporation’s electro-hydraulic (EH) transmission control valve features multiple integrated damping features to increase control of transmission shift operation.

L10n 2560x2048

The frictionless armature of FEMA Corporation’s electro-hydraulic (EH) transmission control valve provides low hysteresis, eliminates wear surfaces and extends the expected duty life cycle.

  • Two-stage, pilot-operated pressure control EH valve which is highly adaptive
  • Pilot-stage design includes high clearances which enable it to function in relatively higher contaminated environment
  • Main-stage design floats to ensure alignment
  • Accommodates simple Direct Current signal resulting in precise control with no dither requirements
  • Multiple integrated damping features increase control of transmission shift operation
  • Each application can be custom tuned to achieve optimum performance
  • Features compact and efficient design for improved packaging in tight spaces
  • Rated for 20-30 bar (290.1-435.1 psi) supply pressure, flows of 30-40 lpm (7.9-10.6 gpm) at 5 bar (72.5 psi) Delta P
  • Operating temperature range of 40-100 C (104-212 F)
  • Can be used in many heavy-duty equipment applications
