Webtec FDC140 Hydraulic Flow Divider-Combiner Valve

The FDC140 valve drives two cylinders or motors in close unison regardless of individual loads or flow direction.

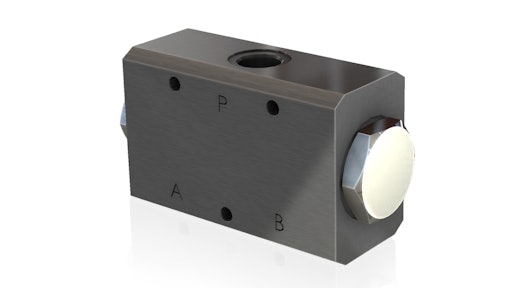

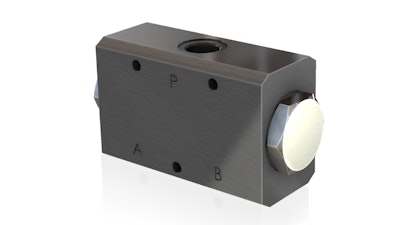

Fdc140 Hi
Webtec
Webtec Logo Hi Res 5930b694cc87b

Webtec has unveiled a high-accuracy hydraulic flow divider-combiner valve called the FDC140.

  • For driving two cylinders or motors in close unison regardless of individual loads or flow direction
  • High-flow spool valve
  • Flow capacity of 140 lpm (37 gpm) and above, suiting large heavy-duty applications such as container handling systems, large-capacity forklifts, skip handling, synchronized crawler drives, loading ramps and mining machinery
  • Can divide single flow into two separate flows which will always be in same ratio to one another regardless of any pressure differential (unequal load)
  • Delivers divisional accuracy of ±1.5%
  • Single flow can also be divided into two unequal flows, if required, with split ratios extending from 10-90% (in 10% increments)
  • Three-port design
  • High-pressure capability, with maximum working pressure rated at 350 bar (5,000 psi)
  • Offers pressure compensation in both forward and reverse flow so valve is fully bi-directional
  • If flow is reversed, such as on the return stroke of two cylinders, the return flows are maintained at the same ratio to each other and combined in a single flow, again regardless of individual loads on the cylinders
  • Features robust SG iron body, hardened steel components and NBR seals
  • Can be used with HLP mineral and synthetic oils, as well as HFC fire-retardant fluids
  • Operating fluid temperatures extend from -30-100 C (-22-212 F)
  • Port options include BSPP (1 in. with 3/4 in. [25.4 mm with 19.05 mm]; and 3/4 in. with 1/2 in. [19.05 mm with 12.7 mm]), SAE (#16 with #12; and #12 with #8) and metric (M33 with M27; and M27 with M22)
  • Weighs 6 kg (13.2 lbs.)
  • External dimensions of 175 x 96 x 65 mm (length, width, depth [6.9 x 3.8 x 2.6 in.])
  • Secured via three bolt holes
