Keestrack to Exhibit E-Mobility Products at bauma 2019

The company will exhibit diesel-electric full hybrid plug-in systems of its track-mounted jaw, impactor and cone crusher series.

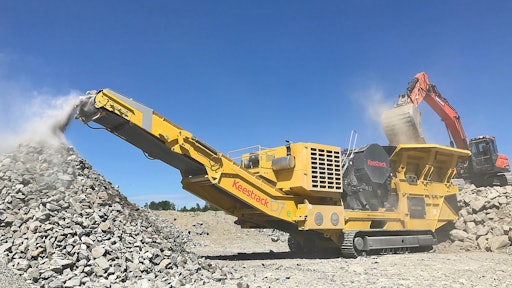

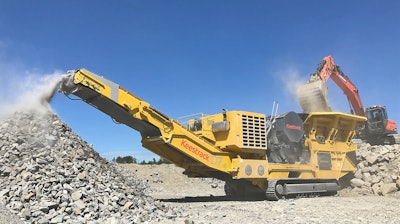

The hybrid B7e jaw crusher features a larger crusher unit (1,200 x 830 mm) and a higher maximum capacity (700 tph).
The hybrid B7e jaw crusher features a larger crusher unit (1,200 x 830 mm) and a higher maximum capacity (700 tph).
Keestrack Logo in print 56afb92c9073c

Keestrack will display a total of nine processing plants at bauma 2019 and will show its entire product range of tracked technology for mineral recycling and quarrying (Stand: FN1017/1). The real leitmotif will be the cost-effective hybrid and plug-in electrification of plant drives, which the globally active supplier not only implements in new model generations and spectacular innovations, but consistently in all performance classes of its crushing, screening and handling solutions.

Complete E-portfolio in mobile crushing

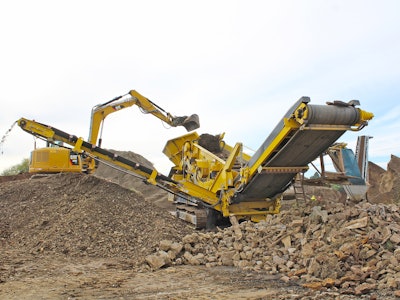

Including two successful 30-ton crushers, Keestrack will present this year all flagships of its track-mounted jaw, impactor and cone crusher series as diesel-electric full hybrid plug-in systems. According to Keestrack, the new and enhanced models are not only class leaders for 60 to 70 tonnes transport weight in terms of size, output, product quality and variety, but are also setting new standards for cost-efficient operation with their sophisticated drive concepts. Without restrictions in transportability and tracked on-site mobility, Keestrack’s diesel-electric heavy crusher range meets both the requirements for volume-intensive recycling jobs on construction sites as well as for flexible multi-stage production of mineral aggregates in pits and quarries. In the fully hybrid “e”-version, the Keestrack K5e Flip Flow screening plant offers a high cost-effectiveness in semi-stationary processing of heterogeneous or difficult materials.In the fully hybrid “e”-version, the Keestrack K5e Flip Flow screening plant offers a high cost-effectiveness in semi-stationary processing of heterogeneous or difficult materials.

For the first time internationally on show, Keestrack presents the jaw crusher Keestrack B7e, as the new 700-tph flagship, replacing the smaller B6. The plant’s core is the tried and tested single-jaw, jaw crusher CJ 412 with a 1200 x 830 mm inlet for feeding sizes up to 700 mm and a wide, hydraulically adjustable CSS range of 75–250 mm. In the B7e – only available as plug-in hybrid – the crusher is driven by a 132-kW electric motor. Another 55-kW electric motor powers the hydraulic system for the tracks, the lifting cylinders, the vibrating feeder with two-deck pre-screening and all conveyors. The entire diesel-electric power is delivered by the on-board Volvo diesel (optional 273 kW (EU IIIa)/285 kW (EU IV) and the on-board 330 kVA generator. The engine house is available in a detachable drop-off module, to be positioned away from the crusher, in a dust and vibration free environment. Thanks to constant and low engine speeds, even under full diesel-electric load, the Keestrack B7e operates with low fuel consumption. According to Keestrack, energy-saving costs of up to 80% can be obtained in emission-free plug-in operation from mains or external gen sets. The plant with a total weight of just under 69 t (with options) is highly mobile: by detaching the 6 m3 feeder unit including pre-screening, the weight drops below 60 tonnes.

High production capacities in secondary and tertiary crushing are guaranteed by the full hybrid cone crusher Keestrack H6e. With a maximum feed size of 215 mm, variable crushing chamber configurations and stroke settings (CSS: 6-44 mm) the specially adapted Keestrack KT-H6 based on proven Sandvik technology, processes up to 400 t/h of most various raw materials. Optionally, an efficient three-deck post-screen module (total 24.5 m2 surface) with oversize recirculation provides high-quality end products, thus guaranteeing high added value. The powerful e-motors for crusher drive and plant hydraulic (220 kW/2 x 30 kW) and all other directly electric-driven components are powered by a detachable diesel/generator module (345 kW/500 kVa) or plug-in via mains or external gen set. With only 62 tons total weight with all options (51.5 t without final screen) the large cone can be operated economically at various jobsites.

This versatility is also the success of the impact crusher R6e as compact and highly mobile "1300" with double pre-screening and double-deck post-screen module incl. oversize recirculation. Still being also available as diesel-hydraulic as well as partially electric with crusher direct drive (rotor-by-diesel), Keestrack shows the R6e in Munich as fully hybrid plug-in version (439 kW/ 550 kVA). Despite its extensive electrification, including the 970 x 1300 mm crusher (250 kW), the hydraulic system (2 x 55 kW), almost all conveyor drives and ancillary units, the 62-t-plant can be flexibly dislocated with the optional dolly-system.

Particularly sensitive are transport weights for compact all-rounders of the 250-300 tph class. Here, Keestrack will display its fully hybrid impact crusher R3e with single-deck post-screen and oversize recirculation (total 32 t), which was introduced last year. Also on show will be the jaw crusher Keestrack B3e with new independent pre-screen. The electric-driven double-deck unit (1,6 m2 + 1,2 m2) optimizes efficiency and wear of the 1000 x 600 jaw crusher, still being the largest unit within the 30-tonne class. The electrical equipment of the predominantly diesel- hydraulically driven plant includes a 42.5 kVA generator for all conveyor drives and ancillaries and the 16A plug-out connection for downstream screens or stackers.

Without supports, the new semi-mobile feeder/stacker Keestrack S1e provides the sensor-monitored piling of about 3,000 t bulk material in confined spaces.Without supports, the new semi-mobile feeder/stacker Keestrack S1e provides the sensor-monitored piling of about 3,000 t bulk material in confined spaces.

Save by combining

Compared to conventional diesel-hydraulic units, diesel-electric driven plants directly save up to 40% of fuel. While working in production trains, the attributable fuel consumption may even decrease by 70% when the hybrid screeners are powered directly via the plug-out supply of an upstream or downstream diesel-electric crusher. To fully exploit this potential, Keestrack offers today six models of his double-deck scalpers (250-1,000 tph) optionally as full hybrid plug-in versions.

New to the "e"-program is the scalper Keestrack K6e: With 8 m3 standard feeder, 4,500 x 1,800 mm double-deck screen box (2 x 8.1 m2) the nearly 30-tonne plant produces three fractions with 600 tph and can be adapted to a wide range of materials and applications with a variety of screen media and additional equipment. A full hybrid screen solution with high potential for economical semi-stationary operation from mains is the Keestrack K5e Flip Flow (approximately 29.5 tonnes). The specially adapted BIVITEC technology in the large double-deck screen box provides a wide range of applications in the economic recycling of residual materials (glass, wood, slag, etc.) or the processing of difficult materials with high basic moisture. The flexible screening equipment also allows the efficient and economical production of minimum grain sizes of <2 mm, handling hot materials (e.g. slag) or generally the production of large quantities of mineral standard products (up to 450 tph).

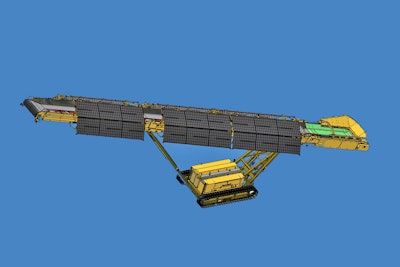

The Keestrack S5e Solar includes photovoltaic modules in the 'sun sail' to provide renewable energy for the battery-powering the fully electric 23-m stacker.The Keestrack S5e Solar includes photovoltaic modules in the "sun sail" to provide renewable energy for the battery-powering the fully electric 23-m stacker.Ideas on stock

Almost positioned close to possible power sources, stackers with their rather low power requirement are particularly suitable for economic alternative drives. That's why Keestrack equipped its tracked stackers with diesel-electric plug-in drives at an early stage. Brand new emission-free models in stockpile handling will be presented in Munich. The semi-mobile electric Feeder/Stacker S1e, is installed on a height-adjustable pedestal with lifting and 180 degree swivel hydraulics. The light 10.20 m belt feeder (5.45 t) conveys up to 280 tph of sand or gravel (maximum size: 200 mm) and creates kidney-shaped piles of maximum 2,900 tonnes. Futuristic will be the world premiere of the tracked stacker Keestrack S5e "Solar", probably world’s first directly solar-driven processing plant. Photovoltaic modules mounted above the 23 m long conveyor feed a 23 kWh battery installed in the chassis. The battery powers all electric driving, lifting and conveying functions. In case of bad weather or intensive continuous operation, the system can be powered or recharged via available external sources, such as upstream diesel-electric crushers and screens, or via mains plug-in.
