Model 7060 Low Profile Roof- or Wall-Mounted Air Conditioner

Visionaire introduces its Model 7060, which is a low profile air conditioner which can be mounted on the roof or wall of heavy-duty equipment.

July 31, 2012
Visionaire Inc.
Visionaire 7060cabaircondition 10753089
Logo

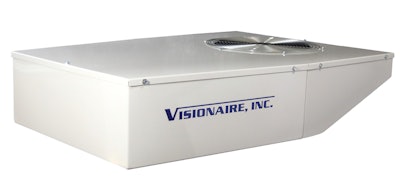

Visionaire Inc. announces the release of the Model 7060 low profile roof- or wall-mounted air conditioning system for heavy-duty off-highway equipment.

  • Offers low overall height of approximately 8 in. (205 mm)
  • Features powder coated steel chassis
  • Cooling capacity of 25,000 BTU/hour
  • Heating capacity: 37,500 BTU/hour
  • Allows for horizontal or vertical installation, with very little space required for mounting
  • Use of multi-flow condenser reduces overall height, while still withstanding the abuse of harsh working conditions
  • Forced air cab pressurization and hydraulic compressor drive options available
  • Air Flow: 420 CFM
  • 3 Speed Blower
  • Refrigerant: R-134a
  • Ceiling Plenum with Louvers
  • All Steel Construction
  • Reusable Washable Filter
  • 30A at nominal 12V DC
  • 15A at nominal 24V DC
  • Weighs 60 lbs.
