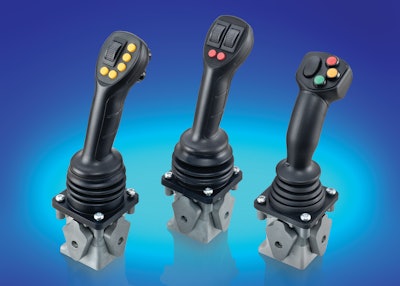

Penny + Giles, a designer and manufacturer of position sensors, solenoids, and joystick controllers, has introduced the JC8000, a heavy-duty electronic joystick controller that has been specially engineered with a number of high-strength features to make it ideal for applications in physically demanding working conditions such as skid steer loader controls or where operators traditionally use hydraulic joysticks.
- Increased body material around the operating lever support area, increased diameter on the operating lever, and a changed pivot geometry enable the joystick to handle increased torque and improve the lever’s bending and applied loads
- Can withstand a 380 Nm overload on the X and Y axes and 2,000 N on the vertical
- Tested to more than 60 million operations (15 million cycles) under laboratory conditions
- Under-panel depth of 70 mm
- Choice of digital or analogue outputs, including dual-redundant 12-bit Hall effect, CANbus J1939 and digital PWM
- Single or dual axis control
- IP69K sealing to the electronics
- 5V DC (regulated) or 8 to 54V DC (unregulated) supply
- Dual-channel analogue output on each axis with optional ramp directions
- Range of eight handle/grip options
- Operating temperature range from -40 to 70 C
