FS1 Ultra-Compact, Finger-Operated Joystick Controller

J.R. Merritt introduces its latest joystick controller, the FS1, which is finger operated and compactly designed.

November 30, 2011
J.R. Merritt Controls

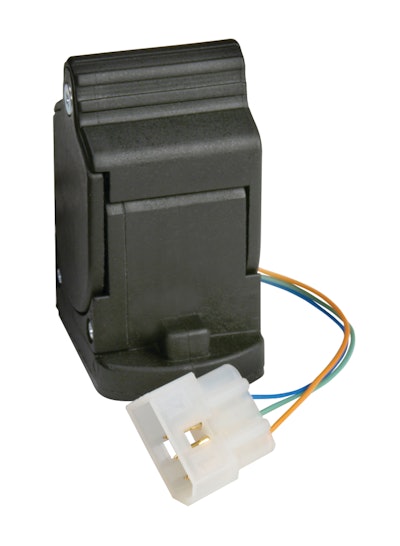

Jrmerritt Fs1 10456085
Jrmc Logo Color Rgb2017 593ab73f842e5

The compact, lightweight and robust design of J.R. Merritt's FS1 finger-operated joystick controller makes it ideal for a variety of applications. This single-axis, Hall-effect joystick features a 2.2 in. (55 mm) actuator height and glass filled Zytel housing.

  • Moisture-resistant non-ferrous components and conformal-coated electronics provide durability
  • Sealed to IP55 and meets or exceeds CE EMC requirements
  • Non-contacting, Hall-effect sensors provide long life and reliable control in harsh environments
  • Extension-style spring return offers smooth and precise operations
  • Optional boot sealed to IP66 is available, making this device suitable for corrosive and hostile environments
  • Other options include a 2.6 in. actuator height, friction brake, step detent, 7 to 30V input, redundant output and low power consumption
  • For use in industrial vehicles, mobile machinery, on- and off-highway applications and for in-plant process control
