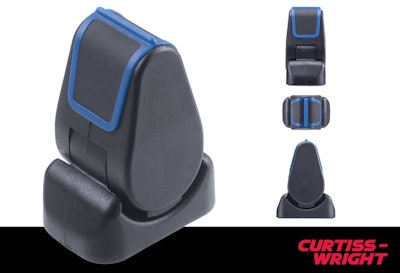

Penny & Giles JC1210 Single-Axis Paddle Joystick

The JC1210 paddle joystick from Curtiss-Wright's Penny & Giles brand features an additional 10 degrees of travel at both ends of the axis.

Cwci 200 Jc1210 Paddle Joystick
800px Curtiss Wright Logosvg 10941485

Curtiss-Wright Industrial division's Penny & Giles brand family has announced the launch of the JC1210, a single-axis paddle joystick that extends the company’s recently-introduced JC1200 family by incorporating latching and overpress functionalities and offering multiple mounting solutions in a single body.

  • Suited for use in control panels and armrest assemblies found in material handling vehicles, industrial trucks, agricultural equipment and construction machinery
  • Features an additional 10 degrees of travel at both ends of the axis, which can be specified by machine designers and end users for either latching or overpress functions – or a combination of both – to meet system requirements to hold functions at full speed/float
  • Long-life bearing system and non-contacting Hall-effect sensing technology enables rating to 5 million cycles (to start of overpress/latching) while providing functionality that is smooth and easy to operate
  • Soft-touch colored insert area of paddle, which has choice of nine colors, increases operator comfort and decreases likelihood of finger-slip during operation
  • Under-panel depth of 9 mm (0.35 in.) requires minimal installation space
  • Delivers spring-loaded return-to-center paddle movement
  • Includes colored ergonomic soft-touch grip
  • Features IP67 protection of internal electronics and joystick-to-panel
  • Offers two mounting-panel fixing variations (center line or corners) in one body
  • 5V DC supply voltage
  • Option for factory-programmable electronics configured to one of two analog voltage output ranges (0.5-4.5V or 1.0-4.0V)
  • Three electrical termination options include integrated Molex connector, flying lead with Molex connector or header pins
