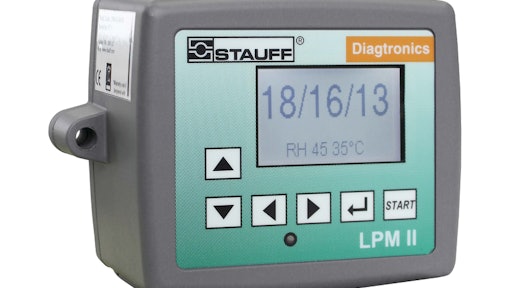

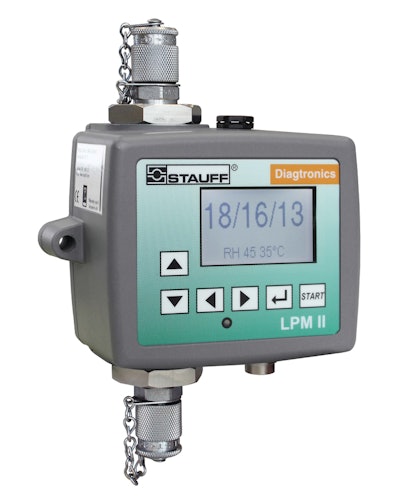

LPM II Particle Monitor

STAUFF's LPM II Particle Monitor uses eight measuring channels to help better distinguish a large range of particle sizes that may be contaminating hydraulic systems.

Stauff Lpmiiparticlemonitor 11183424
Loresstau 10108159

The LPM II Particle Monitor from STAUFF uses newly developed high-performance LEDs, which provide a precise image of the degree of contamination in the hydraulic system.

  • Eight measuring channels helps distinguish particle sizes of between 4 and 70 μm, allowing assessment of contamination at higher contamination classes
  • Permanently installed for continuous monitoring of hydraulic system
  • Enables quick response to increasing contamination, thus protecting system from expensive failures and machine downtimes
  • Available in two versions: LPM II-D with display and keypad, and LPM II-O without display and keypad
  • Both units available with integrated moisture sensor
  • Features robust and compact structure
  • Insensitive to jolts, shocks, dust and moisture (IP65 International Protection Rating)
  • Can be used with virtually any common hydraulic fluid
  • Shows measured data on display as contamination class according to ISO 4406:1999, NAS 1638, AS 4059E and ISO 11218 or as a particle count per size
  • If hydraulic system is not easy to access, separate LPM II-REMOTE can be installed in a convenient location
  • Integrated Modbus and CANbus interfaces can be used to connect device to existing machine control and data acquisition systems
