Marlin Technologies Nine Pushbutton Keypad with CANbus

Marlin Technologies' pushbutton keypad includes six inputs and seven outputs for directly controlling and interfacing with the vehicle.

keypad 5550b5ecf2480
Marlin Logo Color (1)

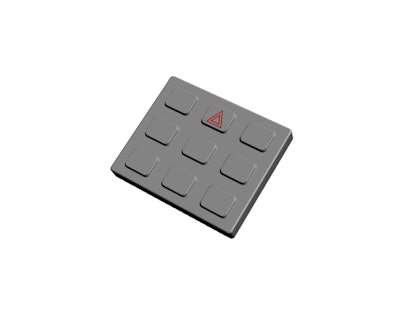

Marlin Technologies' pushbutton keypad with CANbus and inputs/outputs is a silicone rubber keypad with nine pushbuttons that can incorporate custom icons to meet specific applications.

  • Six inputs and seven outputs provided for directly interfacing to and controlling equipment
  • Outputs include two 10A, two 6A and three 3A for activating work lights, headlights and other high current loads
  • Outputs can be controlled directly by pushbuttons or via CAN messages
  • Up to three indicators lights can be provided on each pushbutton
  • Keypad icons are backlit for nighttime operation
  • Pushbuttons and inputs are transmitted on CANbus for controlling other devices
  • Pushbuttons are large and generously spaced for gloved-hand use
  • Keypad measures 4 in. W x 4.8 in. L x 0.63 in. D above mounting panel
  • One 12-pin and one 6-pin Deutsch connectors provide all connections
  • Electronics are encapsulated within the keypad and exceeds IP67 rating for outdoor use
  • Designed for 12V DC vehicle applications
