PTS 810 Series Microminiature SMT Top-Actuated Switches

The PTS 810 Series of microminiature SMT top-actuated switches from C&K Components feature color-coded actuators for easier identification when using multiple switches in a single system.

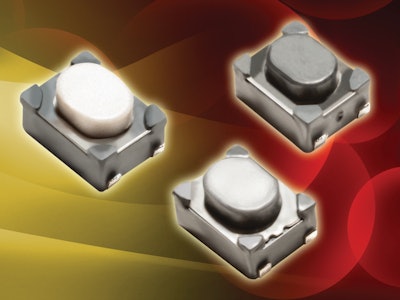

Ckcomponents Pts810seriesswitc 10958035

C&K Components has developed a series of microminiature SMT top-actuated switches, designated the PTS 810 Series.

  • Offers 4.2 x 3.2 mm footprint, 2.5 mm height
  • Well suited for control panels, nomad devices, remote controls and keyless entry systems
  • Color-coded actuators provides easy identification for design engineers using multiple switches within a single system
  • Delivers operational life spans up to 150,000 cycles
  • Includes J-type terminals for SMT use and a .15 mm to .20 mm +/- 0.1 mm travel
  • RoHS compliant and halogen/lead free
  • Available with silver over nickel plate terminals
  • Features operating temperature of -40 to 85 C and a contact rating of 1mA at 16V DC
  • Four switch designs with varying operating forces (gf) and life cycles are available
  • PTS810 SJM 250 has a gray actuator, 160 +/- 50gf, and 150,000 cycles
  • SJK has a white actuator, 260 +/- 70gf, and 50,000 cycles
  • SJG has a blue actuator, 400 +/- 100gf, and 100,000 cycles
  • SJS has a gray actuator, 600 +/- 150gf, and 150,000 cycles
