R7 Series Rocker Switch

The E-Switch R7 Series illuminated rocker switch features an ergonomic, panel mount design and is available with red, green or amber LEDs.

February 5, 2014
E-Switch Inc.

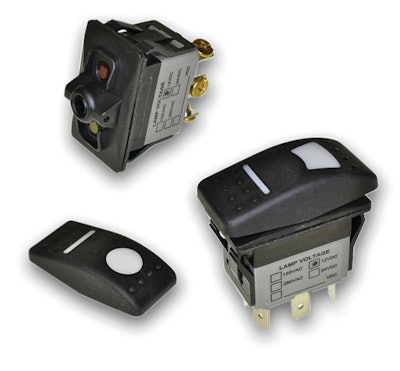

Eswitch R7group 11306335

E-Switch announces the release of its R7 Series illuminated rocker switch.

  • Features ergonomic, panel mount design
  • Offers solder, screw or faston termination options
  • Array of actuator styles, multiple functions and red, green and amber LED colors are available
  • IP67 rated to the front pane
  • Electrical lifespan is 10,000 cycles per UL61058
  • Contact resistance is 20mΩ maximum
  • Insulation Resistance is 100 MΩ minimum at 500V DC
  • Features dielectric strength of 1,500V AC for 1 minute
  • Operating temperature 0 to 55 C, while storage temperature is -20 to 85 C
  • Panel thickness is 1.5 to 4.5 mm
