PHB Series PCB-Mounted Short-Stroke Pushbutton Switches

The PHB Series of PCB-mounted pushbutton switches feature an optional kinked-style termination for secure mounting on two-sided PC boards.

Ckcomponents Phbseriesshortstr 11490674

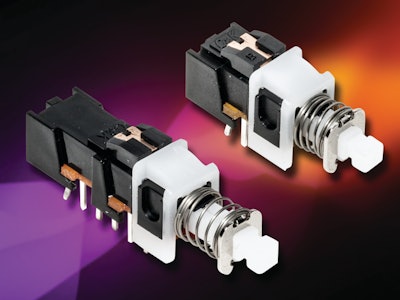

C&K Components has developed the PHB Series of PCB-mounted short-stroke pushbutton switches with an optional kinked-style termination that facilitates secure mounting on two-sided PC boards.

  • For through-hole PCB soldering
  • Available in either two-pole (operating force 170g/1.67N) or four-pole (operating force 230g/2.26N) configurations
  • Total travel distance is 2.5 mm, ±0.5 mm, with latching travel (for push on-push off action) of 1.5 mm, ±0.5 mm
  • Features reliable sealed contact design
  • Well suited for variety of non-power, on-off switch circuits in computer and peripheral equipment, instrumentation and measurement applications
  • Straight terminations are available for conventional soldering
  • Rated for 1A at 15V DC
  • Features contact resistance of 20mOhms (initial) and insulation resistance of 100MOhms, with an operational life of 10,000 cycles at rated load
  • Operating temperature range is -10 to 60 C
  • Available with black, gray, red or ivory buttons in square, round, rectangular or indexed styles
